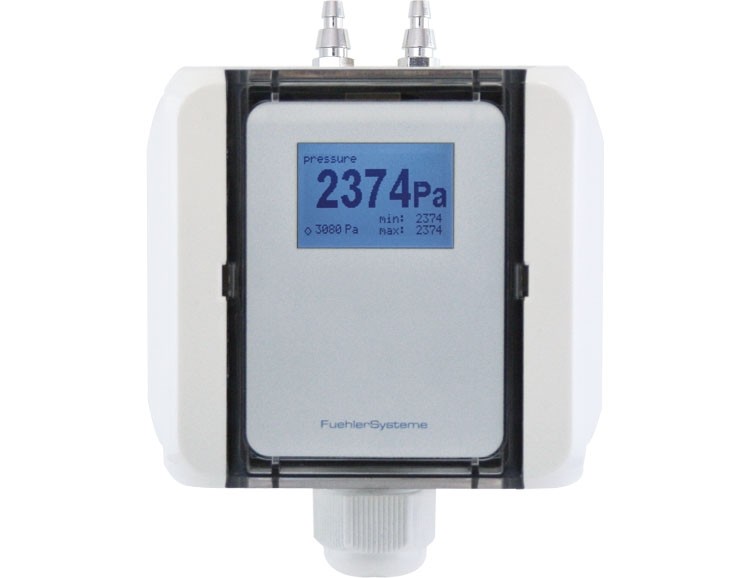

FUEHLERSYSTEME DMU/A用于壓差和體積流量的壓力傳感器，有源輸出（0-10 V 或 4-20 mA）

-5000 ... + 5000 Pa，0-200,000 立方米/小時

每個版本 8 個測量范圍

0-10 V，4-20 mA，繼電器

輸出衰減 0 秒 / 1 秒 / 5 秒 / 10 秒 通過 DIP 開關可選擇

鉸鏈鎖技術

壓力變送器檢測兩個壓力輸入之間的過壓、欠壓或壓差 (P)，并將測量值轉換為 0-10 V 或 4-20 mA 的線性輸出信號?？梢栽谠O(shè)備上設置 8 種不同的比例和壓力變送器的輸出阻尼（0 秒/1 秒/5 秒/10 秒）。

或者，測量裝置可以作為體積流量測量裝置運行。它使用系統特定的 K 系數 (k) 計算體積流量 (Q) 并將計算值輸出為線性輸出信號 0-10 V 或 4-20 mA。 K 系數、體積流量輸出信號 0-10 V 或 4-20 mA 的所需標度、介質密度和所需體積單位（l 或 m3 per s / min / h）可以通過以下方式方便地設置顯示菜單。

背光顯示的內容可以通過菜單和實際值、設置的切換閾值、繼電器狀態、所選間隔（1 h / 6 h / 12 h / 24 h) 等可以讀取。為了現場手動校準零點，壓力變送器只需按一下按鈕即可進行零點調整。如有必要，可以使用 SPAN 控制器在現場對壓力變送器進行精細校準。

型號：Commodity Group 5

SKU Pressure Volume flow Output pressure Version Price € net / gross * Availability Qty Action

DMU/A-I/V1 0...+/-500 Pa - 4-20 mA without display

€160.36  €190.83

Availability

0

Add to CartDelivery Time

DMU/A-I/V2 0...+/-5000 Pa - 4-20 mA without display

€160.36  €190.83

Availability

0

Add to CartDelivery Time

DMU/A-ID/V1 0...+/-500 Pa 0-65.000 m3/h 4-20 mA with display

€215.28  €256.18

Availability

0

Add to CartDelivery Time

DMU/A-ID/V2 0...+/-5000 Pa 0-200.000 m3/h 4-20 mA with display

€215.28  €256.18

Availability

0

Add to CartDelivery Time

DMU/A-IR/V1 0...+/-500 Pa - 4-20 mA, changer without display

€171.34  €203.89

Availability

0

Add to CartDelivery Time

DMU/A-IR/V2 0...+/-5000 Pa - 4-20 mA, changer without display

€171.34  €203.89

Availability

0

Add to CartDelivery Time

DMU/A-IRD/V1 0...+/-500 Pa 0-65.000 m3/h 4-20 mA, changer with display

€226.26  €269.25

Availability

0

Add to CartDelivery Time

DMU/A-IRD/V2 0...+/-5000 Pa 0-200.000 m3/h 4-20 mA, changer with display

€226.26  €269.25

Availability

0

Add to CartDelivery Time

DMU/A-U/V1 0...+/-500 Pa - 0-10 V without display

€160.36  €190.83

Availability

0

Add to CartDelivery Time

DMU/A-U/V2 0...+/-5000 Pa - 0-10 V without display

€160.36  €190.83

Availability

0

Add to CartDelivery Time

DMU/A-U/V3 0...+/-100 Pa - 0-10 V without display

€226.26  €269.25

Availability

0

Add to CartDelivery Time

DMU/A-UD/V1 0...+/-500 Pa 0-65.000 m3/h 0-10 V with display

€215.28  €256.18

Availability

0

Add to CartDelivery Time

DMU/A-UD/V2 0...+/-5000 Pa 0-200.000 m3/h 0-10 V with display

€215.28  €256.18

Availability

0

Add to CartDelivery Time

DMU/A-UD/V3 0...+/-100 Pa 0-30.000 m3/h 0-10 V with display

€281.18  €334.60

Availability

0

Add to CartDelivery Time

DMU/A-UR/V1 0...+/-500 Pa - 0-10 V, changer without display

€171.34  €203.89

Availability

0

Add to CartDelivery Time

DMU/A-UR/V2 0...+/-5000 Pa - 0-10 V, changer without display

€171.34  €203.89

Availability

0

Add to CartDelivery Time

DMU/A-UR/V3 0...+/-100 Pa - 0-10 V, changer without display

€237.24  €282.32

Availability

0

Add to CartDelivery Time

DMU/A-URD/V1 0...+/-500 Pa 0-65.000 m3/h 0-10 V, changer with display

€226.26  €269.25

Availability

0

Add to CartDelivery Time

DMU/A-URD/V2 0...+/-5000 Pa 0-200.000 m3/h 0-10 V, changer with display

€226.26  €269.25

Availability

0

Add to CartDelivery Time

DMU/A-URD/V3 0...+/-100 Pa 0-30.000 m3/h 0-10 V, changer with display

€292.17  €347.68

Pressure type positive, negative or differential pressure

Medium air, non-aggressive, non-flammable, non-condensing gases

Measurement range pressure V1: 0...+/-500 Pa, V2: 0...+/-5000 Pa, V3: 0...+/-100 Pa

Measurement range volume flow (calculated) V1: 0-65.000 m3/h, V2: 0-200.000 m3/h, V3: 0-30.000 m3/h

Scales V1: 0...+/-100, 0...+/-200 Pa, 0...+/-300 Pa, 0...+/-500 Pa; V2: 0...+/-1000, 0...+/-2000 Pa, 0...+/-3000 Pa, 0...+/-5000 Pa; V3: 0...+/-25, 0...+/-50 Pa, 0...+/-75 Pa, 0...+/-100 Pa

Accuracy ±3,0% FS (at 20°C)

Temperature dependency ±2,5% FS / 10 K

Linearity inaccuracy ±1,0% final value

Long term stability ±1% FS/year

Zero-point adjustment max. +2% final value

Offset ±5% from the selected scale by 270° potentiometer

Reaction rate < 1 s, at 5% alteration relating to final value

Output attentuation 0 s / 1 s / 5 s / 10 s selectable by DIP switch

Sensor protection mounted inside housing

Running-in time < 30 min at initial operation because of tempering

Supply voltage analog 0-10 V 24 V AC/DC (±5%)

Supply voltage analog 4-20 mA 15...36 V DC (Ubmin = 15 V + RLoad*0,02A)

Current consumption at 0-10 V typ. 15 mA, 30 mA peak current consumption for 50 ms at switching moment at option relay

Current consumption at 4-20 mA max. 20 mA / output, 40 mA peak current consumption for 50 ms at switching moment at option relay

Analogue output 0-10 V 3-wire connection, min. load resistance 100 kOhm

Analogue output 4-20 mA 2-wire connection (transmitter), max. RLoad(Ohm) = (+Ub - 15 V) / 0,02 A

Alarm output 1 x potential-free change-over contact, 48 V, 1 A

Switching Hysteresis Relay 2% of the selected scaling (without display), 0,5...5% of the selected scaling adjustable (with display)

Electrical connection screw terminals max. 1,5 mm2

Pressure resistance 5-times of measurement range

Housing Polycarbonate PC UL 94 V0 with hinge locks, color signal white similar to RAL 9003

Dimensions Housing: L 89 x W 80 x H 47 mm

Cable gland PG11 high-strength cable gland with strain relief

Display optional LCD display with backlight on/off/auto

Protection type IP65, IP20 if pressure connection port is open

Protection class III

Working range r.H. 0...98% r.H. in contaminant-free, non-condensing air

Working temperature 0...+50°C

Storage temperature 0...+50°C

Installation Housing: screw fastening, Pressure connection: 2 plastic duct connecting nipple with fastening screws and 2 m PVC tube ? 6 mm (in scope of delivery)

Manual zero-point adjustment The zero point adjustment is started by pressing the button on the circuit board (push 10 s until LED stops flashing or by the display version the countdown 10-0 is completed). Before, a continuous operation of at least 1 hour must be sure, the offset must be in the middle position and the pressure inputs P+ and P- must be an obvious offense to the environment. The successful calibration will be signalized by 5 sec durable lightning of the LED.

Approvals CE, EAC, RoHS
